• 탈수/탈산소 방식으로 안전한 용매정제시스템
  • Quick Connector를 통한 장비와 Keg의 빠르고 안전한 연결
  • 각 단계별 레귤레이터 장착으로 안전한 사용
  • Glovebox 연결 가능
  • Designed & Made in USA

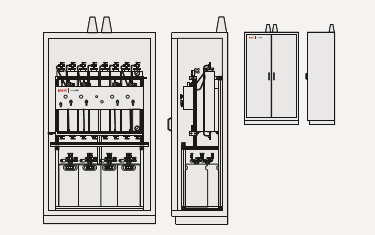

PURESOLV MD3

Dimensions:

947.4 mm W x 835.7 mm D x 1945.9 mm H

PURESOLV MD5

Dimensions:

1267.5 mm W x 835.7mm D x 1945.9 mm H

PURESOLV MD7

Dimensions:

1610.4 mm W x 835.7 mm D x 1945.9 mm H

PURESOLV EN 1-7 BASE

Dimensions:

1455.4 mm W x 932.2 mm D x 1945.9 mm H

PURESOLV EN 1-4 ENCLOSED

Dimensions:

2500 mm W x 780 mm D x 900 mm H

MICRO

Dimensions:

302.3 mm W x 439.4 mm D x 566.4mm H

MICRO MULTI

Dimensions:

302.3 mm W x 439.4 mm D x 566.4 mm H

DESIGN OPTIONS

  • PS-MD-3 Platform available with 1-3 Solvents
  • PS-MD-5 Platform available with 1-5 Solvents
  • PS-MD-7 Platform available with 1-7 Solvents
  • Glovebox Integration
  • Bench Top Design
  • Fume Hood Design
  • Dispensing Joint Options
  • Custom Glassware
  • Other Customizations

SPECIFICATIONS

Frame: Extruded aluminum
Vacuum manifold: Integrated in frame
Inert gas manifold: Integrated in frame
Main system Pressure relief: 70 psi
Electrical ground:
  • Fully bonded system
  • Copper plate for attachment to building ground
  • Retractable grounding reel for solvent reservoir filling
Dispensing:
  • Evacuate/Refill/Dispense: 5-way valve for ease of use and safety
  • Eliminates possibility of dispensing solvent into the vacuum pump
Solvent metering valve: Stainless steel needle valve
Collection flask inert gas refill:
  • Individual low pressure regulator
  • 7psi pressure relief valve
  • Check valve
Collection flask conection joint: Stainless steel 24/40 is standard. Other sizes available.
Horizontal clamping post for collection flask: Height adjustable
Drying Columns:
  • PS-MD – All Permutations
    • Dual purifying column design:
      • Drying columns: 4” (101mm) OD x 25” (635mm) L
    • Internal Volume: 1 US gallon (4L)
  • PS-Micro – All Permutations
    • Single purifying column design:
      • Drying columns: 2.5” (63.5mm) OD x 7.0” (177.8mm) L
    • Internal Volume: (0.5L)
Inlet/Outlet Valves: 3-way 1/4" stainless steel. Allows easy troubleshooting
Drying capacity:
  • PS-MD – All Permutations: 800L based on HPLC grade solvent
  • PS-Micro – All Permutations: 80L based on HPLC grade solvent
Particle filter: Stainless steel, 7 micron
Solvent Reservoir:
  • PS-MD – All Permutations
    • 304 Stainless Steel
    • 17L Volume
  • PS-Micro – All Permutations
    • 304 Stainless Steel
    • 4L Volume
Flammable storage cabinet: Integrated in the lower section of the system frame
Vacuum pump: Solid Teflon and Kalrez for maximum solvent compatibility

2, 4 and 6 Solvent Systems are also available.

OPTIONS

  • Karl Fischer Titrator
  • Air Free Glassware
  • Stainless Steel 14/20 Tapered Joint
  • Stainless Steel 19/24 Tapered Joint
  • Stainless Steel 24/29 Tapered Joint
  • Stainless Steel 24/40 Tapered Joint
  • Stainless Steel 29/32 Tapered Joint
  • Stainless Steel 28/12 Ball Joint
    with O-Ring
  • Luer Lock Needle Adapter
  • Quick Disconnect Adapter
  • Column Regeneration Kits
  • Copper Columns

AVAILABLE SOLVENTS

Aromatic & Aliphatic Hydrocarbons

  • Pentane
  • Hexane
  • Cyclo-Hexane
  • Heptane
  • Toluene
  • Benzene
  • Ethers
  • Diethyl Ether
  • THF
  • DME

Chlorinated Solvents

  • Dichloromethane
  • Chloroform
  • Chlorobenzene
  • Amines
  • Triethylamine
  • Pyridine
  • Diisopropylethylamine

Alcohols

  • Methanol
  • Ethanol

Other Common Solvents

  • Acetonitrile
  • DMF
  • DMSO


Note: This list of solvents is not exhaustive. Other
analogous compounds are available upon request.
